AWE Designer Licensing System
Overview

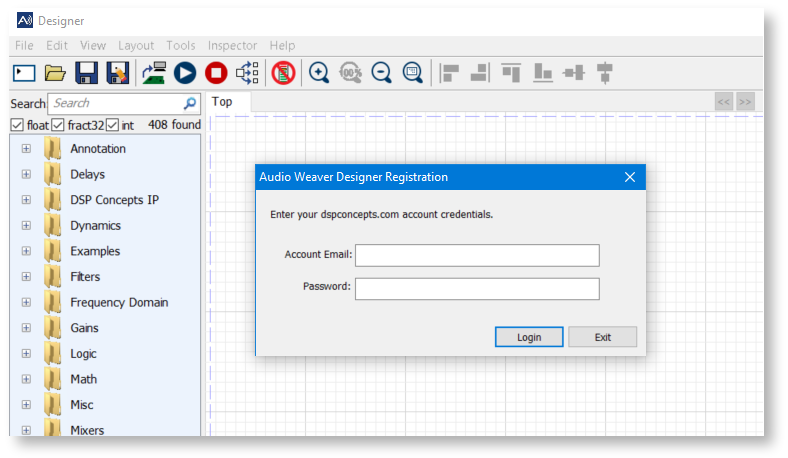

AWE Designer uses an online, account-based licensing system. This system gives developers the flexibility to use AWE Designer on multiple machines and allows features to be enabled over time.
To allow temporary offline-usage — in that hotel room, airplane, or remote site — Designer also has a built-in grace-period where it can operate for several days without an internet connection.
Finally, for those rare circumstances where an IT department cannot modify the firewall, node-locked offline-licenses are available to support fully offline access.
![](../../__attachments/2878900031/image-20230131-180050.png?inst-v=326272e9-cc04-48f3-a51a-5d633eb0a230)
License Administration
When seats of AWE Designer are purchased, they are granted to a designated account on DSPConcepts.com. This account-holder serves as the License Administrator for the licenses, assigning them to individual developers' accounts. (The License Administrator may also be a developer and assign themselves a license.)

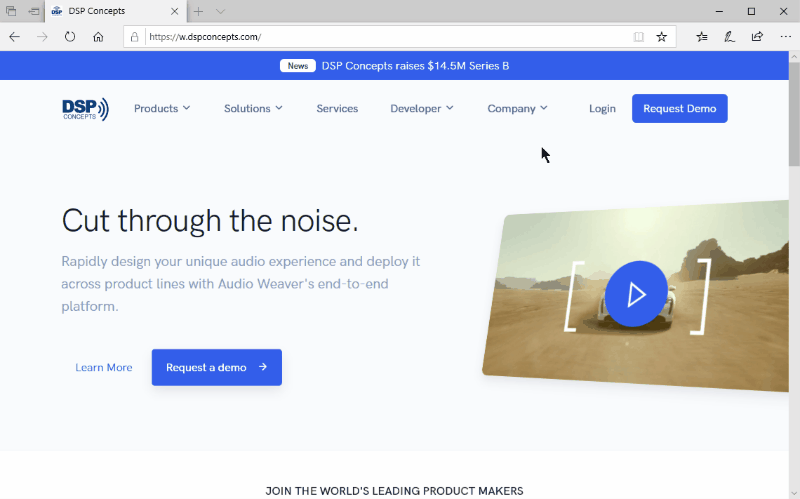

Licenses may be reassigned at any time. To assign a license, the License Administrator should do the following:
Login and go to their My Account page
Scroll down to the License Administration section
Add email address of the assignee's DSPConcepts.com account
Click the [ Update ] button at the bottom of the page.
![](../../__attachments/2878900031/licensing-prompt_2.gif?inst-v=326272e9-cc04-48f3-a51a-5d633eb0a230)

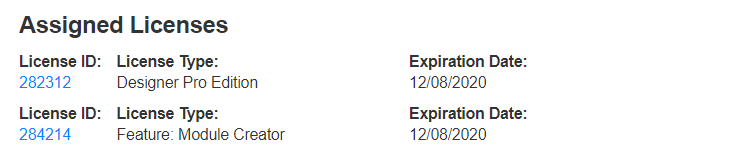

Assigned Licenses
Developers can see all licenses assigned to them in the "Assigned Licenses" section of the My Account page.
![licensing-prompt_3](../../__attachments/2878900031/licensing-prompt_3.png?inst-v=326272e9-cc04-48f3-a51a-5d633eb0a230)
Firewall Whitelisting
Each time Designer runs, it contacts the DSP Concepts Licensing Server to verify licensing status. For some users, this may require your IT department to add a firewall exception.
Please add or request the following be added to your firewall's whitelist:
*.dspconcepts.com
Port
80
Port
443
Offline Licensing
To support temporary offline use, there is a short grace-period where Designer can operate without contacting the licensing server.

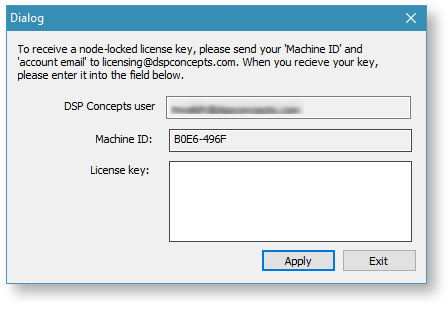

For the rare exceptions when firewall settings cannot be changed, permanent offline access is available using a node-locked license.
![licensing-prompt_4](../../__attachments/2878900031/licensing-prompt_4.png?inst-v=326272e9-cc04-48f3-a51a-5d633eb0a230)
For questions about AWE Designer License, please visit https://dspconcepts.com/forum .
