PlayVolumeControl Reusable Subsystem
About This Application Note
The PlayVolumeControl Reusable Subsystem Application Note contains a brief description and tuning instructions for DSP Concepts’ PlayVolumeControl perception-based volume control Reusable Subsystem.
PlayVolumeControl – Perception-Based Volume Control Reusable Subsystem
PlayVolumeControl is DSP Concepts’ proprietary perception-based volume control algorithm. It is available as a Reusable Subsystem in AWE Designer.
The PlayVolumeControl dynamically applies additional boosts to low and high frequencies based on look-up tables to compensate for differences of perceptual sensitivity in those frequency ranges as a function of the overall sound level.
PlayVolumeControl works for all sampling frequencies, block sizes, and numbers of channels.
Example

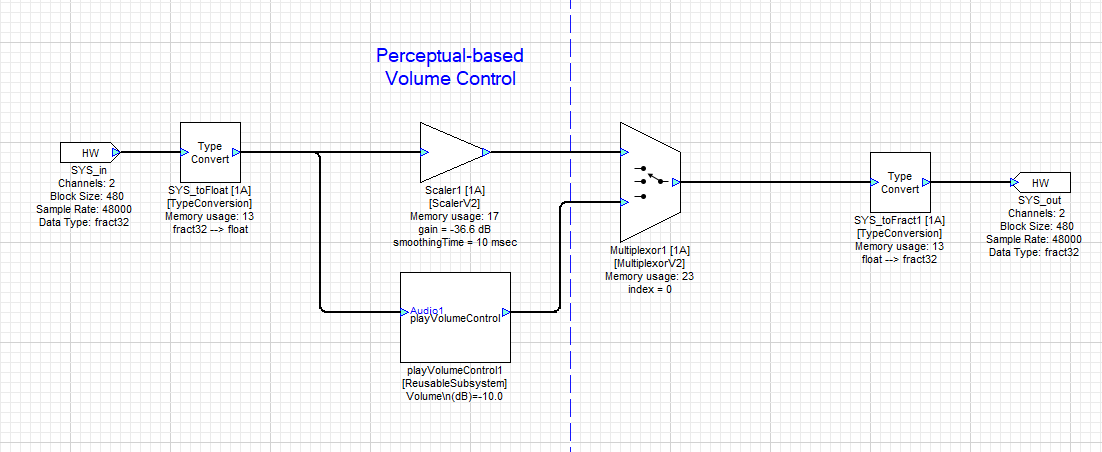

Figure 1 shows an example layout demonstrating the PlayVolumeControl Reusable Subsystem. This example layout is designed to run in Native Mode with a file input; audio signals must be assigned to appropriate channels for running the layout on a target device.
![](../../__attachments/3344172451/att_3_for_2805301543.png?inst-v=afeb83b1-861e-46b8-b4de-1c642321bb7f)
Figure 1: Example layout demonstrating the PlayVolumeControl Reusable Subsystem
Tuning

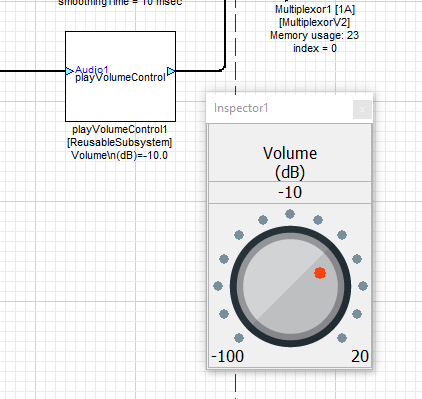

The PlayVoice Reusable Subsystem includes an inspector that allows users to change the volume gain.
![](../../__attachments/3344172451/att_2_for_2805301543.png?inst-v=afeb83b1-861e-46b8-b4de-1c642321bb7f)
Figure 2: PlayVolumeControl Reusable Subsystem inspector window
