AGCLimiterCoreFract32
Overview
Soft knee gain computer for use in peak limiters
Discussion

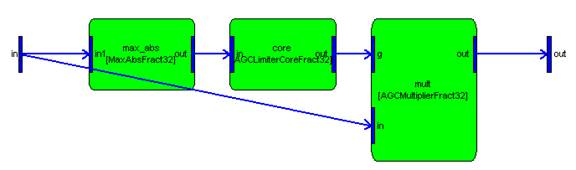

The agc_limiter_core_fract32_module computes a time varying gain which is used to restrict the peak value of a signal. The module is designed to take its input from the max_abs_fract32_module. The module computes a time varying gain on a sample-by-sample basis, and this gain is later applied by the agc_multiplier_fract32_module. The output gain signal is in 8.24 format. The agc_multiplier_fract32_module expects the gain to be in 1.31 format. Thus, the multiplier must be configured to shift by 7 bits. The combination of max_abs_fract32_module, agc_limiter_core_fract32_module, and agc_multiplier_fract32_module modules is referred to as a "limiter" and is contained in the script limiter_module.m.
![](../../__attachments/2748812340/image-20230127-021200.png?inst-v=afeb83b1-861e-46b8-b4de-1c642321bb7f)

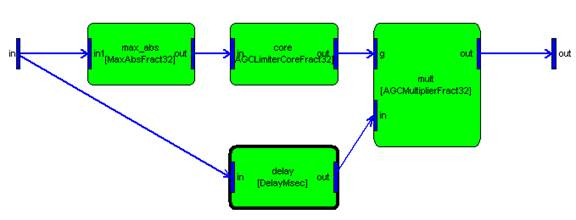

It is also possible to incorporate delay into the limiter effectively allowing it to "look ahead" and anticipate transients. See the limiter_module.m script for details.
![](../../__attachments/2748812340/image-20230127-021213.png?inst-v=afeb83b1-861e-46b8-b4de-1c642321bb7f)
One way to understand the operation of the limiter is to consider the input / output curve shown in the figure below. The X-axis represents the level of the input signal, in dB. For simplicity, assume that the input signal is a sine wave. The Y-axis represents the level of the output sine wave. In the figure, the limitThreshold is set to -30 dB. Signals below limitThreshold are unaffected. Signals above limitThreshold are compressed by the parameter ratio. In the figure, ratio is set to 3 dB/dB, and thus the output signal gets 1 dB louder for every 3 dB increase in the input signal. In typical limiter applications, ratio is set to 100 preventing the signal from getting much louder than threshold.
![](../../__attachments/2748812340/image-20230127-021227.png?inst-v=afeb83b1-861e-46b8-b4de-1c642321bb7f)
The AGCLimiterCoreFract32 module computes the gain needed to realize the input / output curve shown above. The gain curve is shown below. Below limitThreshold, the gain equals 0 dB and thus the level of the signal is unaffected. After limitThreshold, attenuation is applied.
![](../../__attachments/2748812340/image-20230127-021240.png?inst-v=afeb83b1-861e-46b8-b4de-1c642321bb7f)
The outputGain parameter allows you to specify additional gain through the limiter. This gain is just incorporated into the output signal.
The limiter includes a soft knee which causes the attenuation to kick in gradually. The knee is a quadratic function extending from limitThreshold – kneeDepth to limitThreshold + kneeDepth. Due to manner in which the knee is implemented, kneeDepth must always be > 0. The figure below illustrates the input / output level characteristic with:
limitThreshold = -10
ratio = 100
kneeDepth = 10
![](../../__attachments/2748812340/image-20230127-021307.png?inst-v=afeb83b1-861e-46b8-b4de-1c642321bb7f)
The dynamic behavior of the limit is controlled by an envelop detector. attackTime specifies the rate at which sharp transients will be reduced. decayTime specifies the rate at which the limiter returns to unity gain.
Type Definition
typedef struct _ModuleAGCLimiterCoreFract32
{
ModuleInstanceDescriptor instance; // Common Audio Weaver module instance structure
FLOAT32 threshold; // Amplitude level at which the AGC Limiter Core reduces its output gain value
FLOAT32 outputGain; // Value used to scale the output of the AGC Limiter Core
fract32 slope; // TBD
FLOAT32 kneeDepth; // Knee depth controls the sharpness of the transition between no limiting and limiting
FLOAT32 ratio; // Slope of the output attenuation when the signal is above threshold - derived from the standard compression ratio parameter by the formula slope = 1.0 - (1.0/ratio)
FLOAT32 attackTime; // Envelope detector attack time constant
FLOAT32 decayTime; // Envelope detector decay time constant
FLOAT32 sharpnessFactor; // TBD
fract32 sharpnessFactorFract32; // TBD
fract32 attackCoeff; // TBD
fract32 decayCoeff; // TBD
fract32 envState; // TBD
fract32 currentGain; // Instanteous gain applied at the end of the block
fract32 thresholdFract32; // threshold - in 8.24 "base2 dB"
fract32 kneeDepthFract32; // kneeDepth - in 8.24 "base2 dB"
fract32 gainFract32; // outputGain - in 8.24 "base2 dB""
} ModuleAGCLimiterCoreFract32Class;
Variables
Properties
Name | Type | Usage | isHidden | Default value | Range | Units |
threshold | float | parameter | 0 | -10 | -60:0.1:0 | dB |
outputGain | float | parameter | 0 | 0 | -20:0.1:20 | dB |
slope | fract32 | derived | 0 | 0.75 | Unrestricted | dB/dB |
kneeDepth | float | parameter | 0 | 2 | 0.1:60 | dB |
ratio | float | parameter | 0 | 4 | 1:100 | |
attackTime | float | parameter | 0 | 1 | 0.01:1000 | msec |
decayTime | float | parameter | 0 | 100 | 0.01:1000 | msec |
sharpnessFactor | float | derived | 0 | 0.5 | Unrestricted | |
sharpnessFactorFract32 | fract32 | derived | 0 | 0.003906 | Unrestricted | |
attackCoeff | fract32 | derived | 0 | 0.02062 | Unrestricted | |
decayCoeff | fract32 | derived | 0 | 0.0002083 | Unrestricted | |
envState | fract32 | state | 0 | 0 | -60:1 | |
currentGain | fract32 | state | 0 | 0 | -10:5 | |
thresholdFract32 | fract32 | derived | 0 | -0.07813 | Unrestricted | |
kneeDepthFract32 | fract32 | derived | 0 | 0.01563 | Unrestricted | |
gainFract32 | fract32 | derived | 0 | 0 | Unrestricted |
Pins
Input Pins
Name: in
Description: audio input
Data type: fract32
Channel range: 1
Block size range: Unrestricted
Sample rate range: Unrestricted
Complex support: Real
Output Pins
Name: out
Description: audio output
Data type: fract32
Scratch Pins
Channel count: 1
Block size: 32
Sample rate: 48000
MATLAB Usage
File Name: agc_limiter_core_fract32_module.m
M=agc_limiter_core_fract32_module(NAME)
Creates a limiter gain computer with soft knee for use in the Audio
Weaver. Arguments:
NAME - name of the module.
